PLC with PIC 16F877

Author: Prof. Dr. Marco Gottardo
Email:  [email protected]

Prof. Dr. Marco Gottardo
Project Code Short Description Image

PLC with PIC 16F877

Micro Model GT-P877

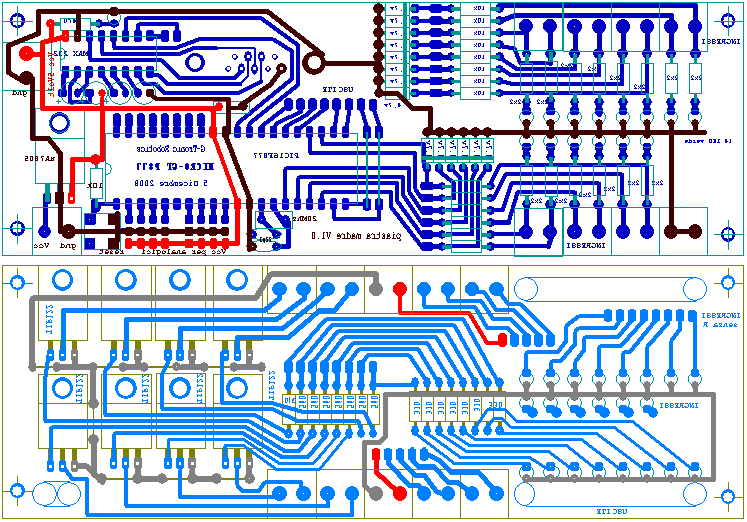

Powerful PLC can be programmed in Ladder hobby for PIC. Done on the first two layers contains the motherboard and communications equipment as well as serial I / O, while the second layer houses the power equipment.

download file FidoCad Micro-GT 877 superimposed
