Amp up to 75 +75 W Music

Author: Prof. Dr. Marco Gottardo
Email:  [email protected]

Prof. Dr. Marco Gottardo
Project Code Short Description Image

Amp up to 75 +75 W Music

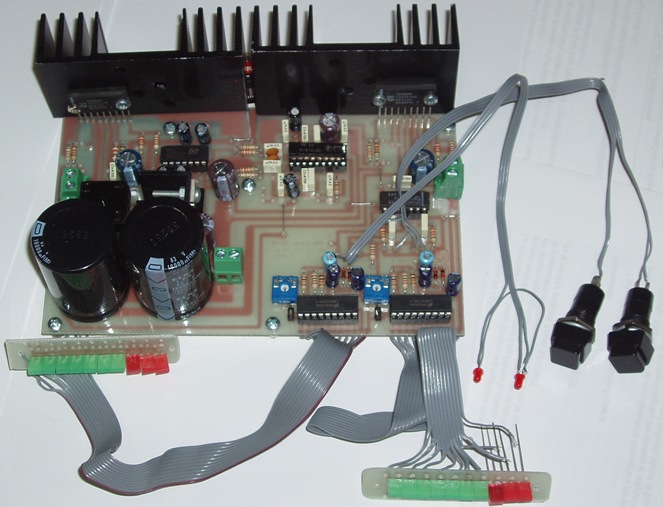

HiFi stereo power amplifier that includes a LED VU-Meter 10 +10 and a mixer to 5 stereo inputs calculated for impedance-type "AUX". integrates a digital 2-channel audio selector and a three-way tone control, balance control and volume switch, which enhances the effect loudnees extremes of the bandwidth when listening at low volume. The dual power supply section is integrated into the PCB.

download file FidoCad.

Check availability of the PCB or by writing for the assembled projects to
[email protected]
