4A Switching Power Supply

Author: Prof. Dr. Marco Gottardo
Email:  ad.noctis@gmail.com

Prof. Dr. Marco Gottardo
Project Code Short Description Image

4A Switching Power Supply

Powerful and robust power supply, adjustable from 5 to 15 times by achieving integrated L296. The operating mode is based on switching technique. E 'strong enough to satisfy every need of the educational and professional laboratory. Better if combined with the digital voltmeter on this site.

download file FidoCad "Switching power supply 5.1 to 15V, 4 Amps

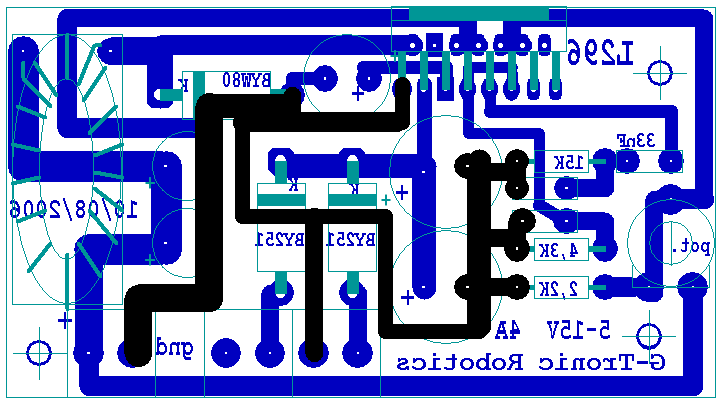

4A Switching Power Supply PCB Layout

size 50 mm x 22mm

Check availability of the PCB or by writing for the assembled projects to
ad.noctis@gmail.com
