Vibration based LED POV Message Display

Learn to make Vibration based LED POV Message Display using Electromagnet, Arduino UNO

Components required:
10 x 10 x 2 mm neodymium magnet = 2 or 3 pcs
12V Electromagnet = 1
TIP122 Transistor = 1
1N4007 diode = 1
5K ohm preset variable resistor =1
Opto-interrupter = 1
SMD LED = 8
220 ohm resistor = 8
Arduino UNO Board = 1
Metal L Clamp/Bracket 40 x 40 mm = 2 Pcs
Steel blade sheet(putty scrapper)
flexible plastic sheet
PCB

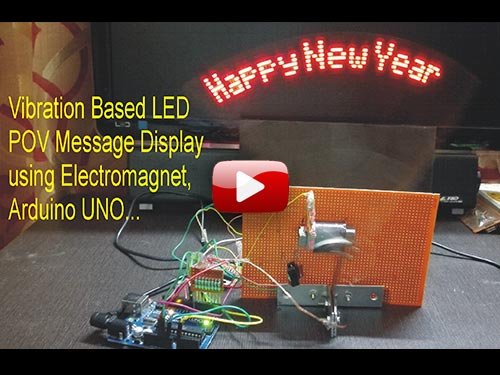

Vibration based LED POV Message Display

You can download Arduino code for this project. HERE
