PLC with PIC 16F876

Author: Prof. Dr. Marco Gottardo
Email:  ad.noctis@gmail.com

Prof. Dr. Marco Gottardo
Project Code Short Description Image

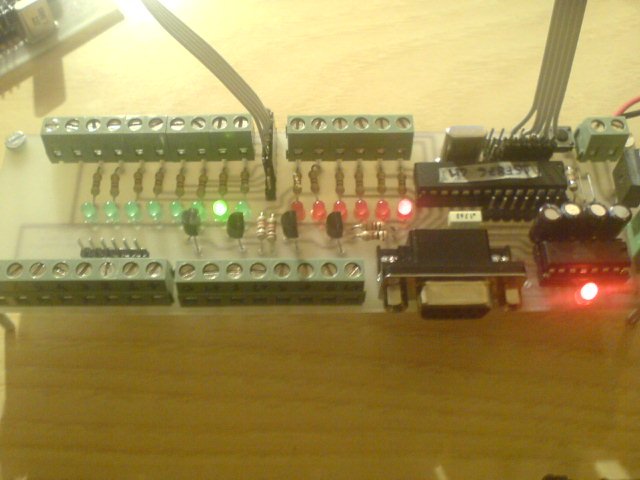

PLC with
PIC 16F876

Micro-GT model P876

Superb small PLC (not available in the industry) made with PIC 16F876. If you use the boot loader the processor can be re programmer to fly just like a real PLC. The inputs are the outputs 8 and 6 in the basic configuration but can be easily expanded.

Micro-GT P876 download FidoCad PCB formats

PLC with PIC 16F876 PCB Layout

Check availability of the PCB or by writing for the assembled projects to
ad.noctis@gmail.com
