I / O expansion for Demo Board 16F876

Author: Prof. Dr. Marco Gottardo
Email:  ad.noctis@gmail.com

Prof. Dr. Marco Gottardo
Project Code Short Description Image

I / O expansion for Demo Board 16F876

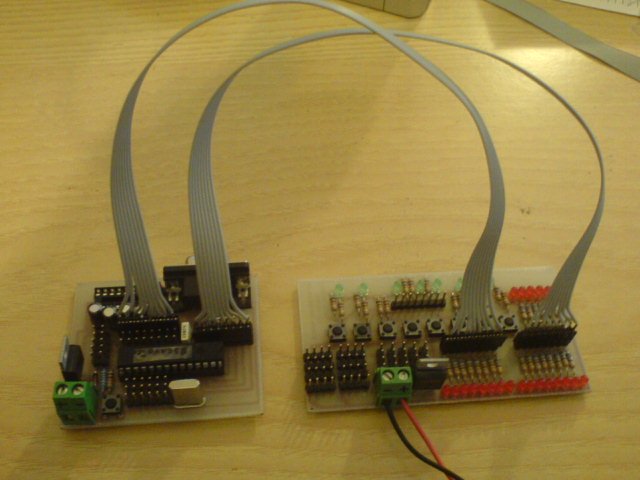

This card makes a great expansion of the potential I / O demoboard for PIC16F876. Links to streep line is via flat cables as shown in the figure.

download file FidoCad expansion of the PCB I / O demo board PIC 16F876

I / O expansion for Demo Board 16F876 PCB Layout

size 111mm x 48mm

Check availability of the PCB or by writing for the assembled projects to
ad.noctis@gmail.com
